T-FAST Sizing & Selection

Project Information

please enter your project information

Ready
Sizing Method
Uses BS 8558:2015 Loading Unit data to calculate weighted DHW peak flow demand
Hot water outlets
T-FAST unit arrangement
Duty units share the calculated flow. Standby units are additional spare units of the same selected model.
Buffer vessel selection
Buffer volume is calculated from peak flow and load period, then matched to the Fiorini PFA vessel range.
ScaleStop selection
ScaleStop selection divides the calculated total mains water flow by the number of ScaleStop units.

Recommended model

iE 80 EVO3

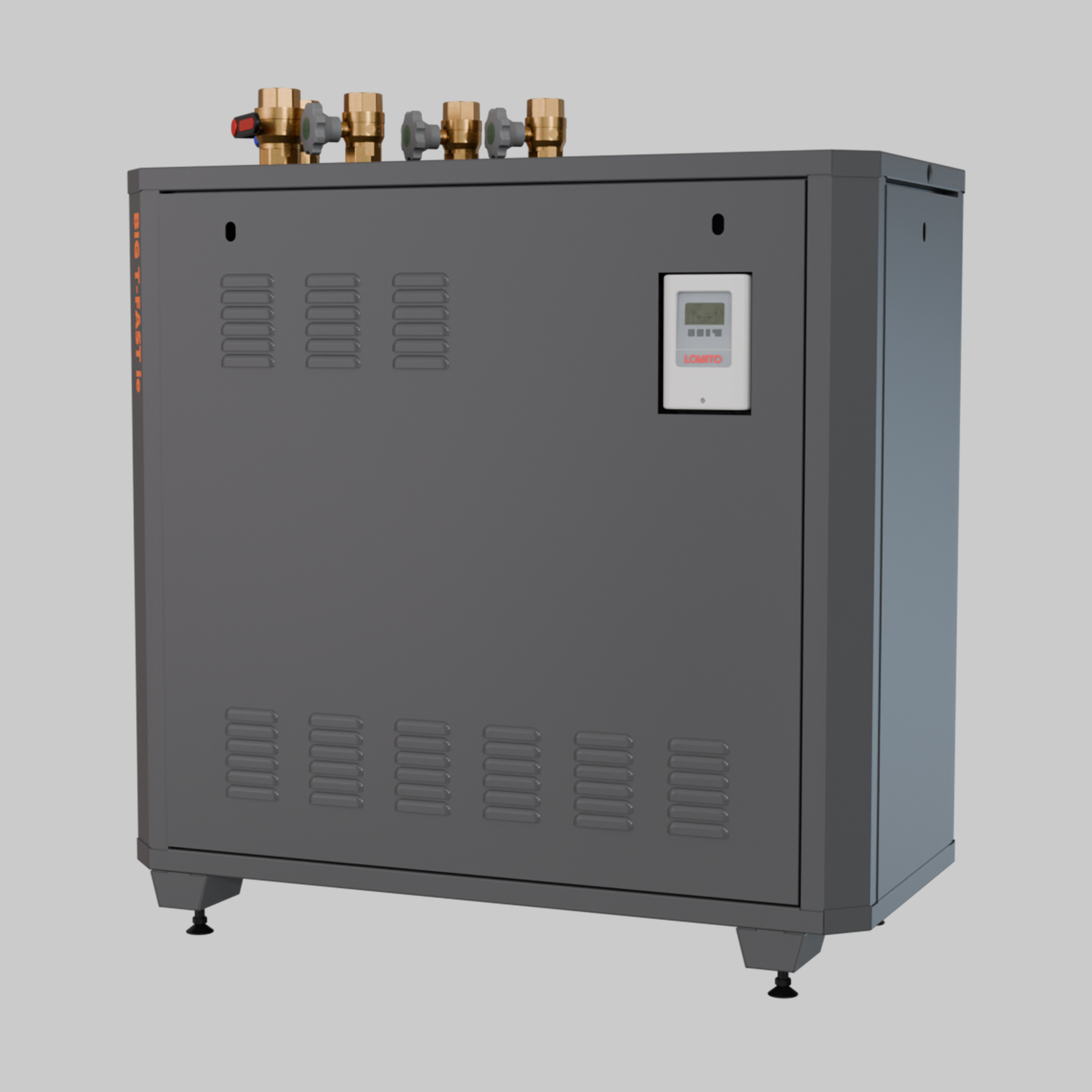

Selected T-FAST unit
Calculated Total (Mains) Water Flow Rate 18 L/min
Calculated Hot Water Flow Rate 12 L/min
Calculated Cold Water Flow Rate 6 L/min
No. Of T-FAST Units 1 unit
Loading units 0.0 LU
Outlet count 0
The selected unit meets the requested peak flow using the chosen operating and primary temperatures.

Buffer vessel selection

Calculated from peak flow and load period.

1 × 400 L
Calculated buffer vessel size 400 L
Buffer vessel sizes 1 × 400 L
Recharge time 7 min

Pipe size suggestion

Calculated from flow rate and pressure drop.

35 mm
Suggested pipe size 35 mm
Velocity 0.9 m/s
Pressure drop 300 Pa/m

ScaleStop selection

Calculated from total mains water flow.

TAC 32
Selected ScaleStop unit Scalestop TAC 32
Flow rate per unit 12 L/min
Unit capacity 32 L/min

Quote summary

Project reference

TF-0000
Subtotal £0
Discount £0
VAT £0
Total £0
Save selection

No database record loaded.

Product range

Current table filtered by operating and primary temperatures.

55 °C DHW · 80 °C primary
Model Peak output Result
